1793347 - DC/DC-omformer, 18 ... 32V, 12V, 10A, 120W

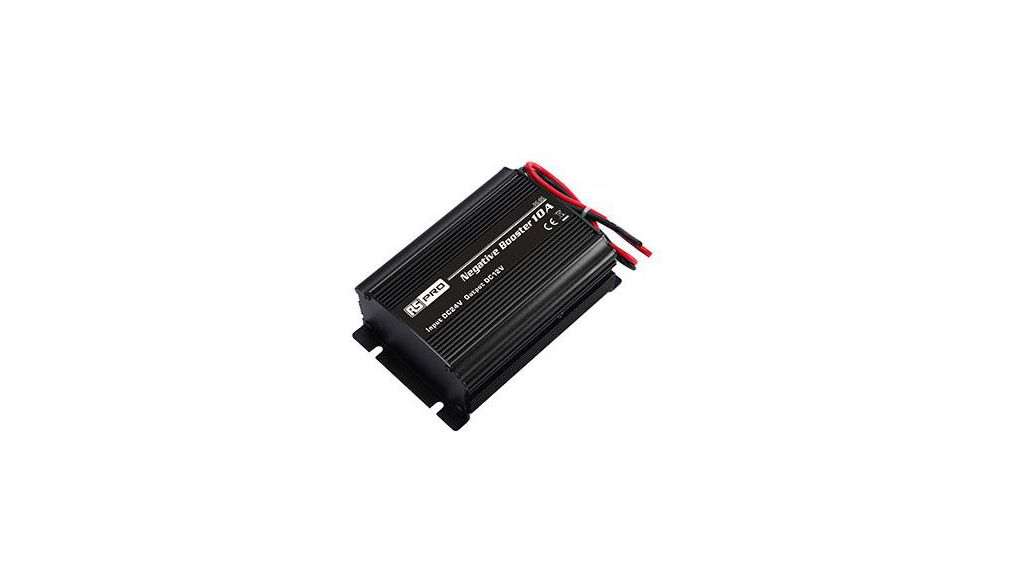

Bildet er kun til illustrasjon. Se produktbeskrivelsen.
1793347 - DC/DC-omformer, 18 ... 32V, 12V, 10A, 120W
Velg egenskaper, og klikk på Søk for å finne andre produkter som passer til spesifikasjonene
Lovgivning og samsvar
Artikkelinformasjon
RS PRO 24V to 12V Isolated Automotive DC to DC Converter A lightweight and compact DC converter for the stepping down of automotive DC voltage from 24V to 12V. ;Encased in an Anodized Aluminium case for excellent durability and maximum heat dissipation along with protective features including power and failure LED indication, over current, over heat and short circuit protection. ;The hardwearing automotive DC converter protected to an IP22 rating and is capable of working in temperatures from -20 to 60°C.;Ideal for use with external car phones, chargers, portable entertainment equipment and many other electrical devices. Features and Benefits DC to DC converter ;12 to 24V conversion;Anodized Aluminium case;LED power and failure indicator;Energy efficiency III;Over current, over heat, and short circuit protection;Compact dimensions of 127 x 91 x 47mm Standards and Approvals: EN 62368-1:2014+A11:2017, EN 61000-6-3:2007+A1:2011, EN IEC 61000-6-1:2019
